Product Details:
|
| Resistance: | 1KΩ±20% | Withstand Voltage: | ≥30KV |
|---|---|---|---|
| Type: | TY0008C03 | Application: | Auto Ignition System |
| Standard: | ISO 6856 / ISO 3808 | Name: | Car Parts Spark Plug Lead Connectors |
| High Light: | 30KV Spark Plug Wire Connector,1KΩ Spark Plug Wire Connector,Low Temp Resistant ignition lead connectors |
||

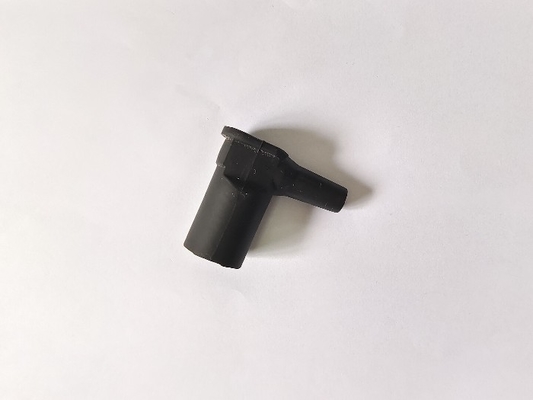

Auto Parts High / Low Temp Resistant Silicone Rubber Plug connecting Spark Plug
Connector characteristics
Heat and cold resistance
Great dielectric properties
Acid and alkali resistance
No deformation, no dilatation
Good uniformity of dimension
Can be customized based on customers
Standard for spark plug wire connector:
Customers:
Specifications and description:
|
Raw material properties |
Shore-A hardness |
55±5A |
|
Elongation at break |
≥300% |
|
|
Tear strength |
≥15N/mm |
|
|
Dielectric strength |
≥20KV/mm |
|
|
Tensile strength |
≥6N/mm2 |
|
|
Tensile deformation |
≤20% |
|
|
Density |
1.17±0.02 g/cm3 |
|
|
Withstand voltage 18KV for 30minutes |
NO breakdown |
|
|
Surface resistance |
≥1011Ω |
|
|
Ageing resistance |
155±2.5℃X168h,Without any cracking |
|
|
Connector characteristics |
Usage temperature |
-20℃-155℃ |
|
Breakdown voltage (AC) |
≥30KV |
|
|
Insertion and removal forces |
20-70N |
|
|
Overall length |
/ |
|
|
Resistance |
1KΩ±20% |
|
|
Lifetime |
≥50,000km / ≥3years |
|
|
Heat and cold resistance |
||
|
Great dielectric properties |
||
|
Acid and alkali resistance |
||
|
No deformation, no dilatation |
||
|
Good uniformity of dimension |
||
|
Can be customized based on customers |
||
|
Assembly dimension |
Cable entry diameter |
5.5±0.5mm |
|
Assembly dimension: connecting cable |
|
|
|
Plug entry diameter |
14±0.5mm |
|
|
Assembly dimension: connecting spark plug |
|
|
